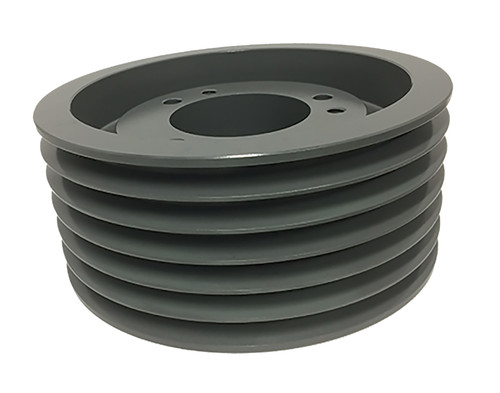

65V800E, V-Belt Pulley

65V800E

65V800E, V-Belt Pulley, Cast Iron

Learn more about 65V800E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	65V800E
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	7.900
Outside Diameter (in)	8.000
Face Width (in)	4.438
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	24.20
Part Number Cross Reference	QD6/5V8.00, 6 5V 800 E, 6-5V800.E, 65V800E, 5V8.0-6-E, 20180883, 6-5V8.00-E SHEAVE, 5V806, 65V8.0, 5V8.0-6-E, 6/5V800E, 6-5V8.00, 65V800E, 6/5V800E, 455372, 65V800E
Grooves	6
