66-3M-PS8A, Timing Pulley Stock

66-3M-PS8A, A6A22M066TM20, A 6A22M066TM20, 66-3M-PS-8A, 3M 66, 66-3M-P-8A

Product Details for 66-3M-PS8A

Comparable to: A 6A22M066TM20, A6A22M066TM20, 66-3M-PS-8A, 3M 66, 66-3M-P-8A

Click to Enlarge

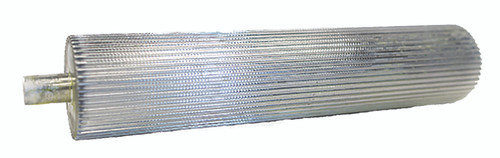

66-3M-PS8A, Timing Pulley Stock, Aluminum

Learn more about 66-3M-PS8A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 66-3M-PS8A
Teeth 66
Tooth Style HTD 3mm
Material Aluminum
Pitch Diameter (in) 2.481
Outside Diameter (in) 2.451
Overall Length (in) 8.750
Unit System Inch
Min. Usable Length (in) 8.000
P.D. (mm) 63.00
O.D. (mm) 62.30
MOQ 1
Weight (lb) 3.50
Part Number Cross Reference A 6A22M066TM20, A6A22M066TM20, 66-3M-PS-8A, 3M 66, 66-3M-P-8A
Shank Length (in) 0.7500
