67-14MX125-4535, Timing Pulley

67-14MX125-4535 - Cast Iron Powerhouse® MX Pulleys

Product Details for 67-14MX125-4535

Comparable to: 67-14MX125-4535, 14MX-67S-125, B14MCS-67-1

Click to Enlarge

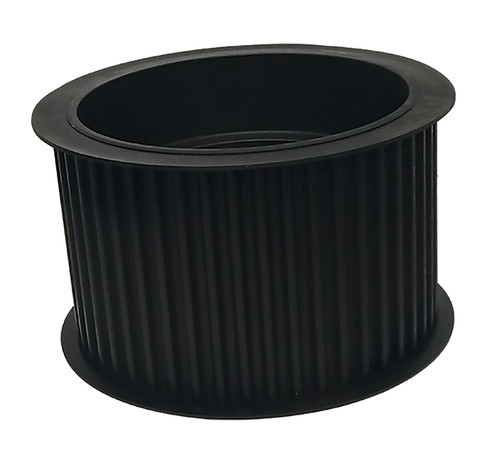

67-14MX125-4535, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 67-14MX125-4535 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 67-14MX125-4535
Teeth 67
Tooth Style GT2 14mm
For Belt Width (mm) 125.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 4535
Pitch Diameter (in) 11.755
Outside Diameter (in) 11.645
Flange Diameter (in) 12.500
Face Width (in) 5.609
Overall Length (in) 5.609
Min. Bore (in) 1.9375
Pulley Belt Width (in) 5.290
Unit System Inch
Bushing 4535
Max. Bore (in) 5.000
Weight (lb) 88.00
Part Number Cross Reference 67-14MX125-4535, 14MX-67S-125, B14MCS-67-1
