67-14MX68-3525, Timing Pulley

67-14MX68-3525 - Cast Iron Powerhouse® MX Pulleys

Product Details for 67-14MX68-3525

Comparable to: 67-14MX68-3525, 14MX-67S-68, B14MCS-67-68, 67G-14M-68-TL3525, 208398

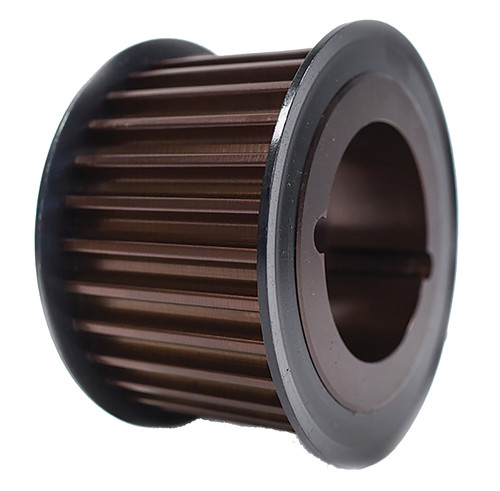

67-14MX68-3525, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 67-14MX68-3525 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 67-14MX68-3525
Teeth 67
Tooth Style GT2 14mm
For Belt Width (mm) 68.000
Type D1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3525
Pitch Diameter (in) 11.755
Outside Diameter (in) 11.645
Flange Diameter (in) 12.500
Face Width (in) 3.328
Overall Length (in) 3.328
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.010
Unit System Inch
Bushing 3525
Max. Bore (in) 3.9375
Weight (lb) 52.16
Part Number Cross Reference 67-14MX68-3525, 14MX-67S-68, B14MCS-67-68, 67G-14M-68-TL3525, 208398
