68-14P85-3535, Timing Pulley

68-14P85-3535 - Cast Iron Powerhouse® Pulleys

68-14P85-3535

Click to Enlarge

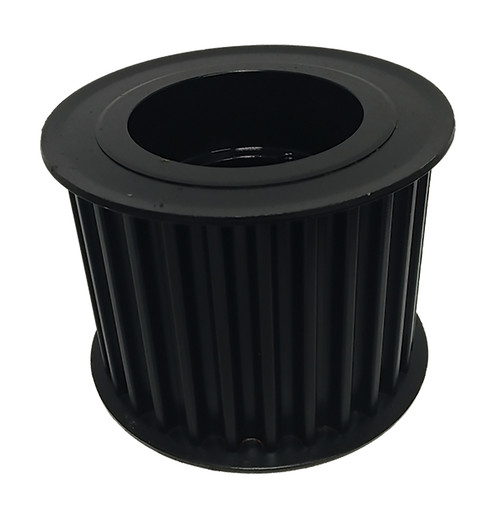

68-14P85-3535, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 68-14P85-3535 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 68-14P85-3535
Teeth 68
Tooth Style 14P
For Belt Width (mm) 85.00
Type D1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3535 Bushing
Pitch Diameter (in) 11.930
Outside Diameter (in) 11.820
Flange Diameter (in) 12.500
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 1.1875
Pulley Belt Width (in) 3.680
Unit System Inch
Bushing 3535
P.D. (mm) 303.00
O.D. (mm) 300.20
MOQ 1
Weight (lb) 64.56
Part Number Cross Reference P68-14MGT-85, B6814M85TL, P68-14M-85-3535, 20182858, P68-14M-85-3535 HT250 SPKT, P6814M85TL, 68-14P85-3535, 112958, 68-14P85-3535

Comparable to: P68-14MGT-85, B6814M85TL, P68-14M-85-3535, 20182858, P68-14M-85-3535 HT250 SPKT, P6814M85TL, 68-14P85-3535, 112958, 68-14P85-3535
