68-2P09-6A3, Timing Pulley

68-2P09-6A3 - Aluminum Powerhouse® Pulleys

68-2P09-6A3

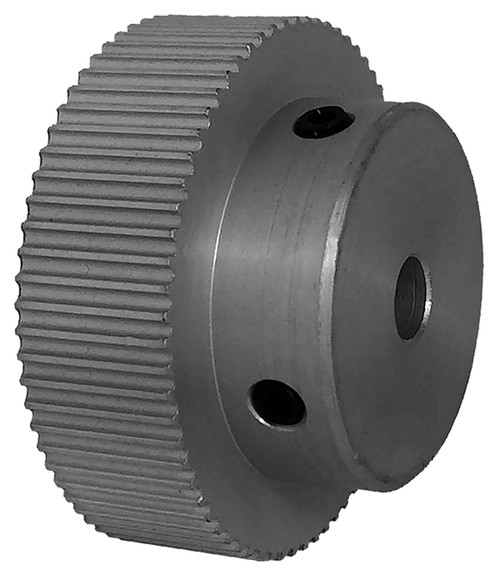

Click to Enlarge

68-2P09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 68-2P09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 68-2P09-6A3
Teeth 68
Tooth Style 2P
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.704
Outside Diameter (in) 1.684
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.185
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.500
Unit System Inch
P.D. (mm) 43.00
O.D. (mm) 42.80
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A51-068NF0908, A6A51-068NF0908, 2MR-68S-09, TP2A3H9-68, 68-2P09-6A3
Set Screw Quantity 2
