68-3M06-6A4, Timing Pulley

68-3M06-6A4 - Aluminum Powerhouse®HTD® Pulleys

68-3M06-6A4

Click to Enlarge

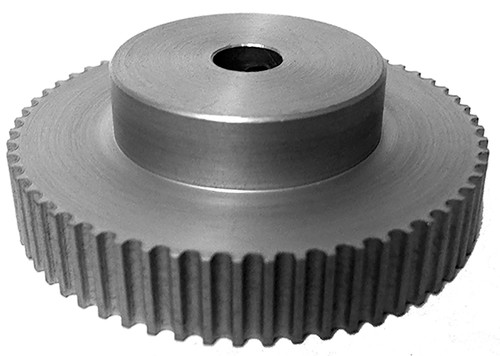

68-3M06-6A4, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 68-3M06-6A4 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 68-3M06-6A4
Teeth 68
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.557
Outside Diameter (in) 2.527
Face Width (in) 0.407
Overall Length (in) 0.714
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 65.00
O.D. (mm) 64.20
MOQ 1
Weight (lb) 0.26
Part Number Cross Reference A 6A23-068NF0610, A6A23-068NF0610, 68M3-L06M-6, 68-3M-06 X 5/16, 68-3M06-6A4, 68-3M06-6A4
Set Screw Quantity 2

Comparable to: A 6A23-068NF0610, A6A23-068NF0610, 68M3-L06M-6, 68-3M-06 X 5/16, 68-3M06-6A4, 68-3M06-6A4

Documentation

General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
