68-5P25-2012, Timing Pulley

68-5P25-2012 - Cast Iron Powerhouse® Pulleys

68-5P25-2012

Click to Enlarge

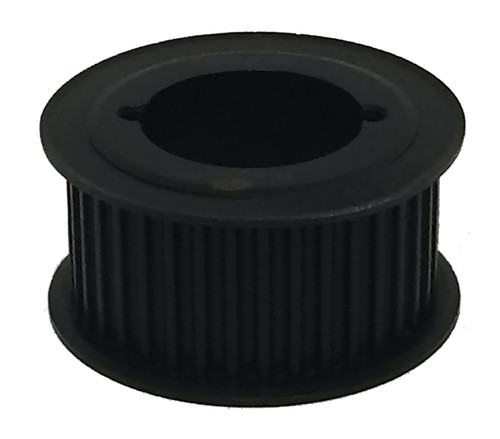

68-5P25-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 68-5P25-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 68-5P25-2012
Teeth 68
Tooth Style 5P
For Belt Width (mm) 25
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.261
Outside Diameter (in) 4.216
Flange Diameter (in) 4.520
Face Width (in) 1.280
Overall Length (in) 1.280
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
Bushing 2012
P.D. (mm) 108.00
O.D. (mm) 107.10
MOQ 1
Weight (lb) 2.64
Part Number Cross Reference P68-5MGT-25, 68-5P25-2012
