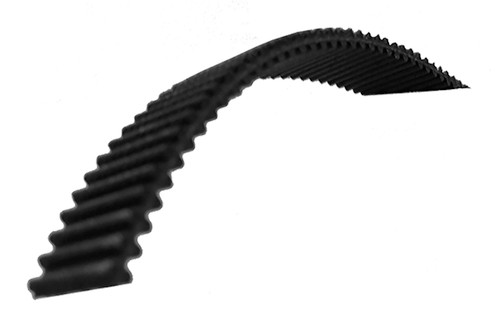

684-D3M-06, Double Sided Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

684-D3M-06, TP684-3M-06

684-D3M-06

684-D3M-06, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided Timing Belt

Learn more about 684-D3M-06 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number 684-D3M-06
Teeth 228
Tooth Style HTD3mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 6.00
Pitch Length (mm) 684.00
Construction Neoprene
Reinforcement Fiberglass
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6R23MD228060, TP684-3M-06, 684-D3M-06, 684-D3M-06, 684-D3M-06

Comparable to: A 6R23MD228060, TP684-3M-06, 684-D3M-06, 684-D3M-06, 684-D3M-06

Documentation

General Characteristics
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
