685-D5M-25, Double Sided Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

685-D5M-25, TP685-5M-25

685-D5M-25

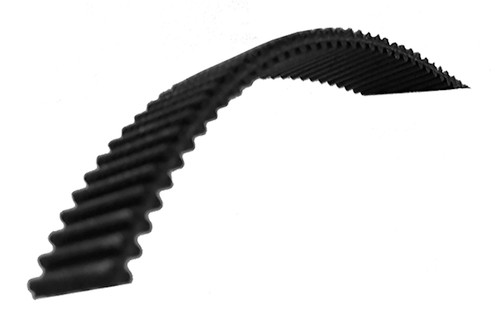

685-D5M-25, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided

Learn more about 685-D5M-25 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number	685-D5M-25
Teeth	137
Tooth Style	HTD5mm
Unit System	Metric
Belt Type	Double Sided
Belt Width (mm)	25.00
Pitch Length (mm)	685.00
Construction	Neoprene
Reinforcement	Fiberglass
MOQ	1
Weight (lb)	0.19
Part Number Cross Reference	A 6R25MD137250, TP685-5M-25, 685-D5M-25, 685-D5M-25, 685-D5M-25

Comparable to: A 6R25MD137250, TP685-5M-25, 685-D5M-25, 685-D5M-25, 685-D5M-25
