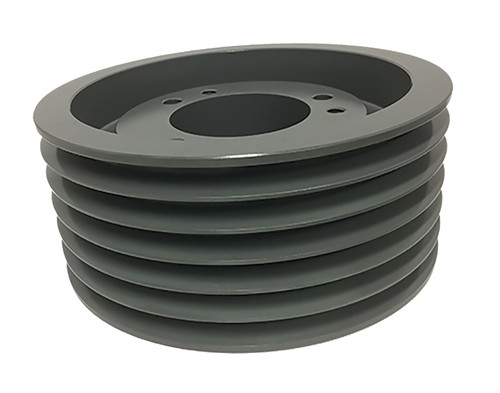

68V2480M, V-Belt Pulley

68V2480M

68V2480M, V-Belt Pulley, Cast Iron

Learn more about 68V2480M V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	68V2480M
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for M Bushing
Pitch Diameter (in)	24.600
Outside Diameter (in)	24.800
Face Width (in)	7.125
Min. Bore (in)	2
Unit System	Inch
Bushing	M
E (in)	0.3437
L (in)	6.75
M (in)	0.03125
MOQ	1
Sheave Type	8V
For Belt Type	8V
Weight (lb)	235.00
Part Number Cross Reference	QD6/8V24.80, 6 8V 2480 M, 6-8V2480.M, 68V2480M, 8V24.8-6-M PULLEY, 20180993, 6-8V24.80-M SHEAVE, 8V2486, 68V24.8, 8V24.8-6-M, 6/8V2480M, 6-8V24.80, 68V2480M, 6/8V2480M, 456660, 68V2480M
Grooves	6
