695-D5M-09, Double Sided Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

695-D5M-09, TP695-5M-09

695-D5M-09

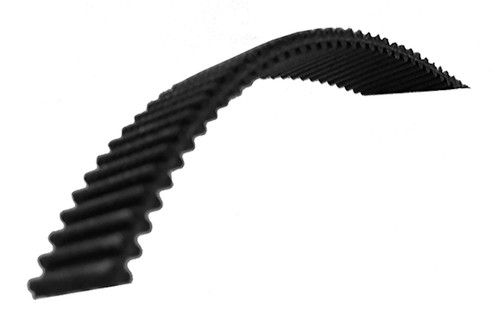

695-D5M-09, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided

Learn more about 695-D5M-09 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number 695-D5M-09
Teeth 139
Tooth Style HTD5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 9.00
Pitch Length (mm) 695.00
Construction Neoprene
Reinforcement Fiberglass
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6R25MD139090, TP695-5M-09, 695-D5M-09, 695-D5M-09, 695-D5M-09

Comparable to: A 6R25MD139090, TP695-5M-09, 695-D5M-09, 695-D5M-09, 695-D5M-09
