6B110SF, V-Belt Pulley

6B110SF, 11.0-6B-SF, 20178944, 1106B, 6B110

Product Details for 6B110SF

Comparable to: QD6A10.8/B11.0, 6B110.SF, 6B110SF, 11.0-6B-SF, 20178944, 1106B, 6B11.0, 6/B1100SF, 6B110, 6BQ110

Click to Enlarge

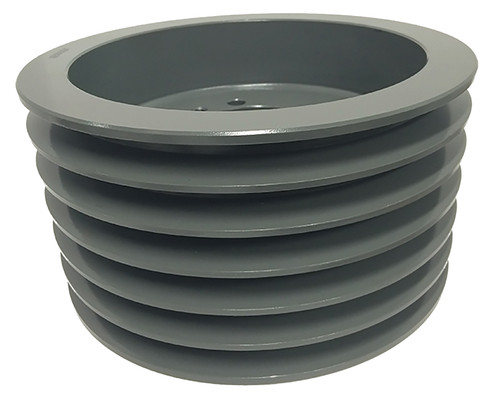

6B110SF, V-Belt Pulley, Cast Iron

Learn more about 6B110SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B110SF
Type A3
Material Cast Iron
Bore Type QD
Bore (in) SF
Outside Diameter (in) 11.350
Face Width (in) 4.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
Max. Bore (in) 2.9375
MOQ 1
Pitch Dia. "A" 10.600
Pitch Dia. "B" 11.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 32.00
Part Number Cross Reference QD6A10.8/B11.0, 6B110.SF, 6B110SF, 11.0-6B-SF, 20178944, 1106B, 6B11.0, 6/B1100SF, 6B110, 6BQ110
Grooves 6
