6B250E, V-Belt Pulley

6B250E, 25.0-6B-E, 20179174, 2506B, 6B250

6B250E

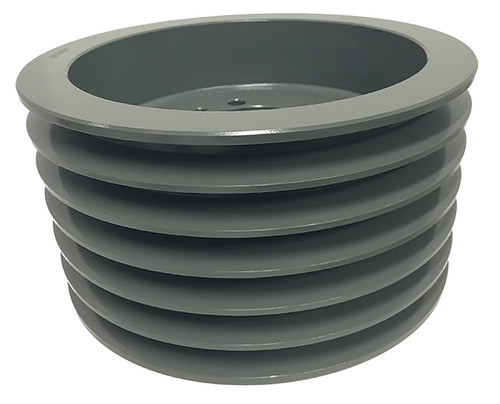

6B250E, V-Belt Pulley, Cast Iron

Learn more about 6B250E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B250E
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Outside Diameter (in) 25.350
Face Width (in) 4.750
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Pitch Dia. "A" 24.600
Pitch Dia. "B" 25.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 96.00
Part Number Cross Reference QD6A24.8/B25.0, 6B250.E, 6B250E, 25.0-6B-E, 20179174, 6B250-E SHEAVE, 2506B, 6B25.0, 25.0-6B-E, 6/B2500E, 6B250, 6BQ250, 6B250E, 6B250E, 455738, 6B250E
Grooves 6

Related Products

Comparable to: QD6A24.8/B25.0, 6B250.E, 6B250E, 25.0-6B-E, 20179174, 6B250-E SHEAVE, 2506B, 6B25.0, 25.0-6B-E, 6/B2500E, 6B250, 6BQ250, 6B250E, 6B250E, 455738, 6B250E
