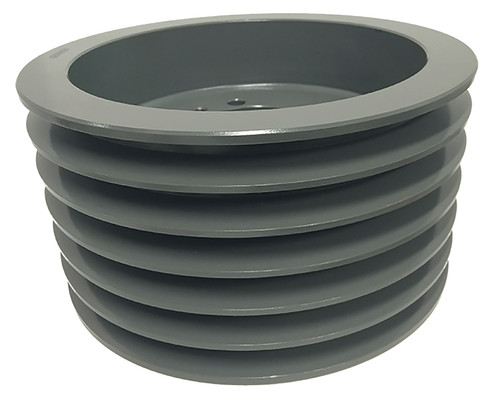

6B42SD, V-Belt Pulley

6B42SD

6B42SD, V-Belt Pulley, Cast Iron

Learn more about 6B42SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6B42SD
Type	E-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SD Bushing
Outside Diameter (in)	4.550
Face Width (in)	4.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
MOQ	1
Pitch Dia. "A"	3.800
Pitch Dia. "B"	4.200
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	9.00
Part Number Cross Reference	QD6A4.0/B4.2, 6B42.SD, 6B42SD, 4.2-6B-SD, 20179265, 6B42-SD SHEAVE, 426B, 6B4.2, 4.2-6B-SD, 6/B420SD, 6B42, 6BQ42, 6B42SD, 6B42SD, 455712, 6B42SD
Grooves	6
