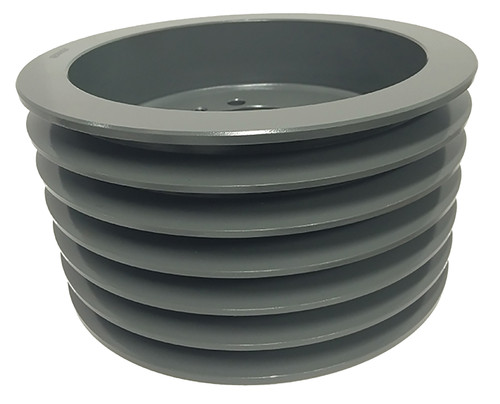

6B66SK, V-Belt Pulley

6B66SK

6B66SK, V-Belt Pulley, Cast Iron

Learn more about 6B66SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6B66SK
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	6.950
Face Width (in)	4.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	6.200
Pitch Dia. "B"	6.600
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	18.00
Part Number Cross Reference	QD6A6.4/B6.6, 6B66.SK, 6B66SK, 6.6-6B-SK, 20179402, 6B66-SK SHEAVE, 666B, 6B6.6, 6.6-6B-SK, 6/B660SK, 6B66, 6BQ66, 6B66SK, 6B66SK, 455724, 6B66SK
Grooves	6
