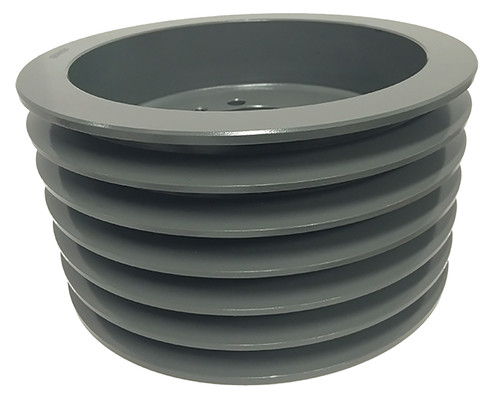

6B80SF, V-Belt Pulley

6B80SF

6B80SF, V-Belt Pulley, Cast Iron

Learn more about 6B80SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6B80SF
Type	A-2
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Outside Diameter (in)	8.350
Face Width (in)	4.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Pitch Dia. "A"	7.600
Pitch Dia. "B"	8.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	24.00
Part Number Cross Reference	QD6A7.8/B8.0, 6B80.SF, 6B80SF, 8.0-6B-SF, 20179457, 6B80-SF SHEAVE, 806B, 6B8.0, 8.0-6B-SF, 6/B800SF, 6B80, 6BQ80, 6B80SF, 6B80SF, 455728, 6B80SF
Grooves	6
