6B94SF, V-Belt Pulley

6B94SF, 9.4-6B-SF, 20179503, 946B, 6B94

Product Details for 6B94SF

Comparable to: QD6A9.2/B9.4, 6B94.SF, 6B94SF, 9.4-6B-SF, 20179503, 946B, 6B9.4, 6/B940SF, 6B94, 6BQ94

Click to Enlarge

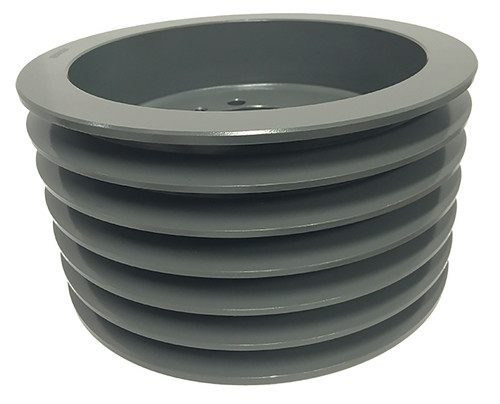

6B94SF, V-Belt Pulley, Cast Iron

Learn more about 6B94SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B94SF
Type A3
Material Cast Iron
Bore Type QD
Bore (in) SF
Outside Diameter (in) 9.750
Face Width (in) 4.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
Max. Bore (in) 2.9375
MOQ 1
Pitch Dia. "A" 9.000
Pitch Dia. "B" 9.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 27.00
Part Number Cross Reference QD6A9.2/B9.4, 6B94.SF, 6B94SF, 9.4-6B-SF, 20179503, 946B, 6B9.4, 6/B940SF, 6B94, 6BQ94
Grooves 6
