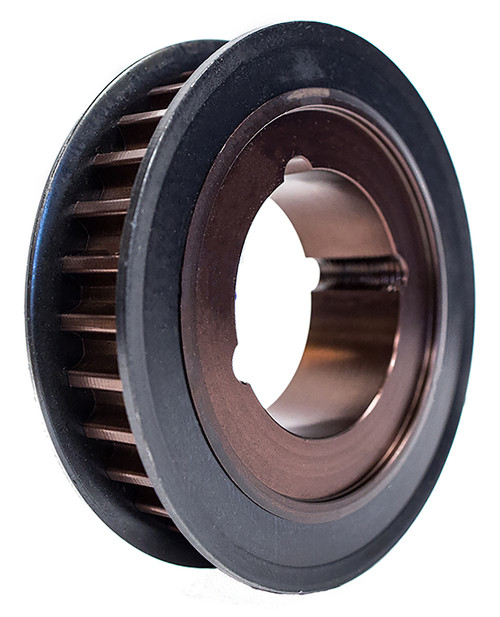

71-14MX20-3525, Timing Pulley

71-14MX20-3525 - Cast Iron Powerhouse® MX Pulleys

71-14MX20-3525

Click to Enlarge

71-14MX20-3525, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 71-14MX20-3525 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 71-14MX20-3525
Teeth 71
Tooth Style 14MX
For Belt Width (mm) 20.00
Type C1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3525 Bushing
Pitch Diameter (in) 12.457
Outside Diameter (in) 12.347
Flange Diameter (in) 13.187
Face Width (in) 1.359
Overall Length (in) 2.500
Min. Bore (in) 1.5
Pulley Belt Width (in) 1.040
Unit System Inch
Bushing 3525
P.D. (mm) 316.00
O.D. (mm) 313.60
MOQ 1
Weight (lb) 39.23
Part Number Cross Reference 14MX-71S-20, 14MX71S20-3525, B14MCS-71-20, 71G-14M-20-3525, 20839863, 14MX-71S-20-3525 HT500 SPKT, 14MPC71S20, 14MX71S20-3525, 71-14MX20-3525, 482039, 71-14MX20-3525

Comparable to: 14MX-71S-20, 14MX71S20-3525, B14MCS-71-20, 71G-14M-20-3525, 20839863, 14MX-71S-20-3525 HT500 SPKT, 14MPC71S20, 14MX71S20-3525, 71-14MX20-3525, 482039, 71-14MX20-3525

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
