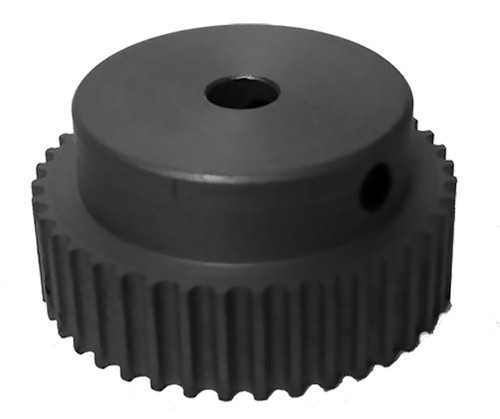

72-3M06M6A8, Timing Pulley

72-3M06M6A8 - Aluminum Powerhouse®HTD® Pulleys

72-3M06M6A8

72-3M06M6A8 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

72-3M06M6A8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72-3M06M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-3M06M6A8
Teeth 72
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 2.707
Outside Diameter (in) 2.677
Face Width (in) 0.407
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 69.00
O.D. (mm) 68.00
Face Width (mm) 10.30
Overall Length (mm) 18.60
Hub Diameter (mm) 31.80
MOQ 1
Weight (lb) 0.30
Part Number Cross Reference A 6A23M072NF0608, A6A23M072NF0608, 72 3M 6, 72-3M06M6A8, 72-3M06M6A8
Set Screw Quantity 2
