72-3P09-6A4, Timing Pulley

72-3P09-6A4 - Aluminum Powerhouse® Pulleys

72-3P09-6A4

Click to Enlarge

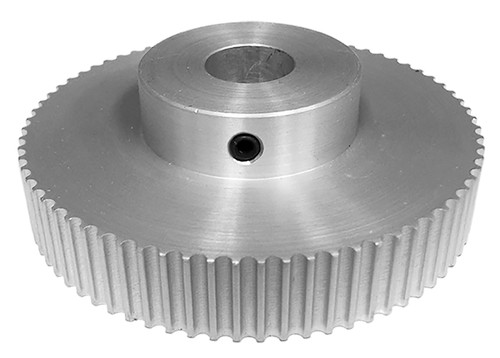

72-3P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72-3P09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-3P09-6A4
Teeth 72
Tooth Style 3P
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.707
Outside Diameter (in) 2.677
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 69.00
O.D. (mm) 68.00
MOQ 1
Weight (lb) 0.35
Part Number Cross Reference A 6A53-072NF0910, A6A53-072NF0910, 3MR-72S-09, 3MR-72S-09 6, TP3A3H9-72, 72-3GT09-2A X 5/16, 72-3P09-6A4, 72-3P09-6A4
Set Screw Quantity 2

Comparable to: A 6A53-072NF0910, A6A53-072NF0910, 3MR-72S-09, 3MR-72S-09 6, TP3A3H9-72, 72-3GT09-2A X 5/16, 72-3P09-6A4, 72-3P09-6A4

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
