72-3P09-6A6, Timing Pulley

72-3P09-6A6 - Aluminum Powerhouse® Pulleys

Product Details for 72-3P09-6A6

Comparable to: 72-3P09-6A6, A 6A53-072NF0916, A6A53-072NF0916

Click to Enlarge

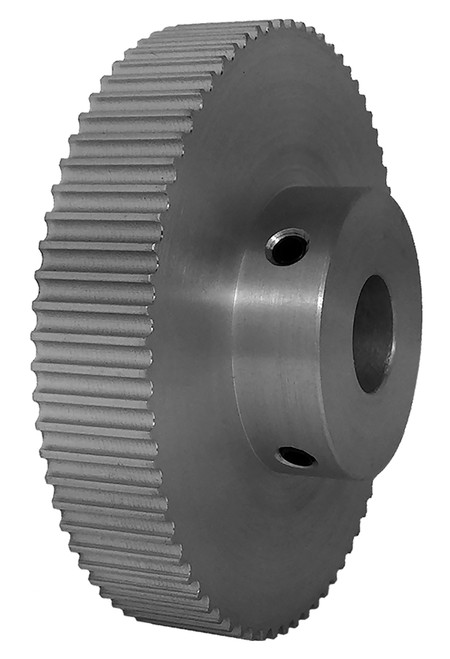

72-3P09-6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72-3P09-6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 72-3P09-6A6
Teeth 72
Tooth Style GT 3mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 2.707
Outside Diameter (in) 2.677
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.250
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.500
Unit System Inch
Max. Bore (in) 1
Weight (lb) 0.32
Part Number Cross Reference 72-3P09-6A6, A 6A53-072NF0916, A6A53-072NF0916
