72-8M-PS8A, Timing Pulley Stock

72-8M-PS8A, 72-8M-PS-8A

Product Details for 72-8M-PS8A

Comparable to: 72-8M-PS8A, 72-8M-PS-

Click to Enlarge

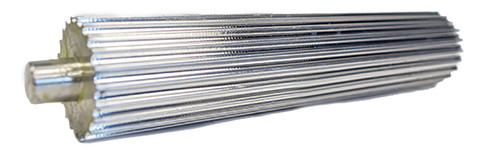

72-8M-PS8A, Timing Pulley Stock, Aluminum

Learn more about 72-8M-PS8A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-8M-PS8A
Teeth 72
Tooth Style HTD 8mm
Material Aluminum
Pitch Diameter (in) 7.218
Outside Diameter (in) 7.164
Overall Length (in) 9.000
Unit System Inch
Min. Usable Length (in) 10.000
P.D. (mm) 183.30
O.D. (mm) 182.00
Weight (lb) 31.33
Part Number Cross Reference 72-8M-PS8A, 72-8M-PS-
