72-8MX21-2517, Timing Pulley

72-8MX21-2517 - Cast Iron Powerhouse® MX Pulleys

72-8MX21-2517

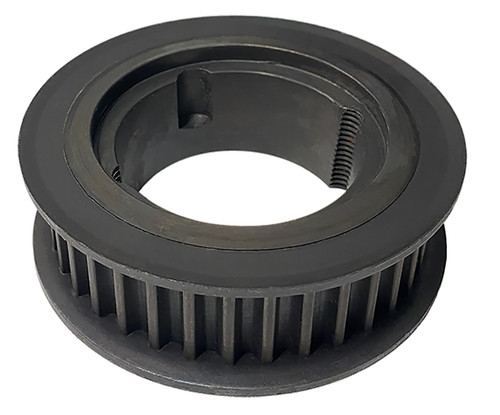

Click to Enlarge

72-8MX21-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 72-8MX21-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-8MX21-2517
Teeth 72
Tooth Style 8MX
For Belt Width (mm) 21.00
Type C1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 7.218
Outside Diameter (in) 7.155
Flange Diameter (in) 7.575
Face Width (in) 1.203
Overall Length (in) 1.750
Min. Bore (in) 0.5
Unit System Inch
Bushing 2517
P.D. (mm) 183.00
O.D. (mm) 181.70
MOQ 1
Weight (lb) 10.81
Part Number Cross Reference 8MX-72S-21, B8MCS-72-21, 72G-8M-21-2517, N/A, 72-8MX21-2517, 72-8MX21-2517
