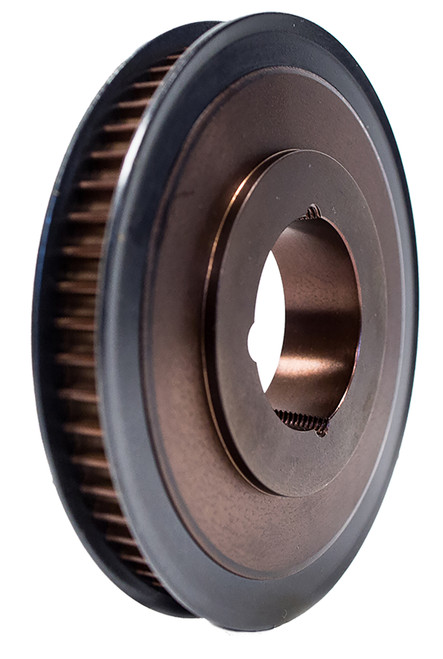

72-8P12-1610, Timing Pulley

72-8P12-1610 - Cast Iron Powerhouse® Pulleys

72-8P12-1610

Click to Enlarge

72-8P12-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 72-8P12-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-8P12-1610
Teeth 72
Tooth Style 8P
For Belt Width (mm) 12.00
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 7.218
Outside Diameter (in) 7.164
Flange Diameter (in) 7.575
Face Width (in) 0.750
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 1610
P.D. (mm) 183.00
O.D. (mm) 182.00
MOQ 1
Weight (lb) 8.28
Part Number Cross Reference P72-8MGT-12, 72-8P12-1610, 72-8P12-1610
