72-8P20-2012, Timing Pulley

72-8P20-2012

Click to Enlarge

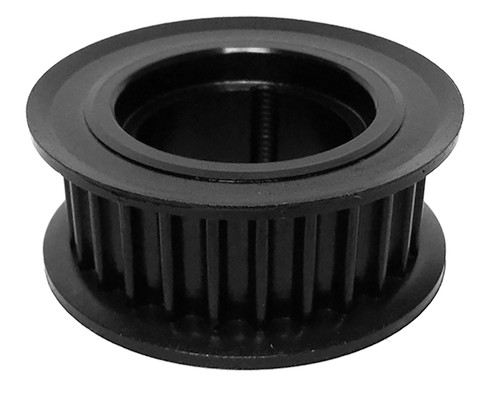

72-8P20-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 72-8P20-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	72-8P20-2012
Teeth	72
Tooth Style	8P
For Belt Width (mm)	20.00
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	7.218
Outside Diameter (in)	7.164
Flange Diameter (in)	7.575
Face Width (in)	1.130
Overall Length (in)	1.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.890
Unit System	Inch
Bushing	2012
P.D. (mm)	183.00
O.D. (mm)	182.00
MOQ	1
Weight (lb)	10.27
Part Number Cross Reference	P72-8MGT-20, B728M20TL, P72-8M-20-2012, 20182863, P72-8M-20-2012 HT250 SPKT, P728M20TL, 72-8P20-2012, 112864, 72-8P20-2012
