72HQ200, Timing Pulley

72HQ200 - Cast Iron Imperial Pitch Pulleys

72HQ200

Click to Enlarge

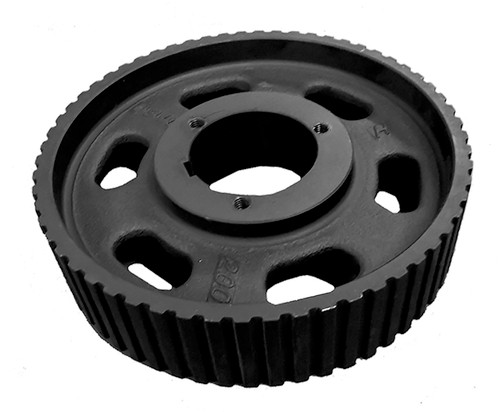

72HQ200, Timing Pulley, Cast Iron

Learn more about 72HQ200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72HQ200
Teeth 72
Tooth Style H
For Belt Width (in) 2.0000
Type A-3
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 11.459
Outside Diameter (in) 11.405
Face Width (in) 2.500
Overall Length (in) 3.063
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 291.00
O.D. (mm) 289.70
MOQ 1
Weight (lb) 25.17
Part Number Cross Reference 72HQ200, 72HQ200, 72HQ200
