72LH075, Timing Pulley

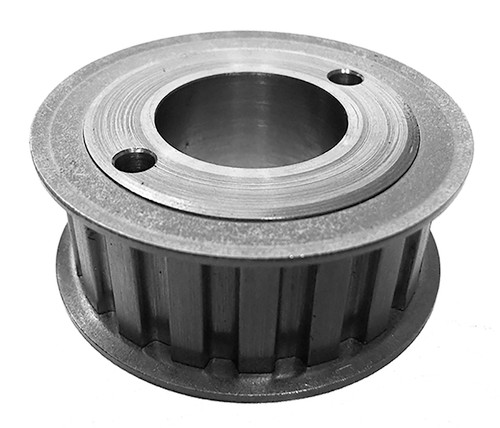

72LH075 - Cast Iron Imperial Pitch Pulleys

72LH075

72LH075 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

72LH075, Timing Pulley, Cast Iron

Learn more about 72LH075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72LH075
Teeth 72
Tooth Style L
For Belt Width (in) 0.7500
Type 17
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 8.594
Outside Diameter (in) 8.564
Face Width (in) 1.000
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 218.00
O.D. (mm) 217.50
MOQ 1
Weight (lb) 6.55
Part Number Cross Reference 72LH075, 72LH075, 72LH075
