72LP100, Timing Pulley

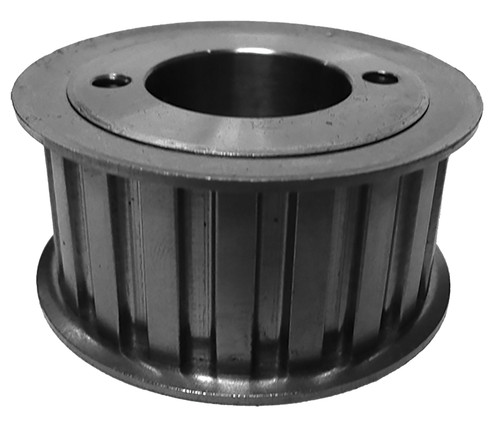

72LP100 - Cast Iron Imperial Pitch Pulleys

72LP100

72LP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

72LP100, Timing Pulley, Cast Iron

Learn more about 72LP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72LP100
Teeth 72
Tooth Style L
For Belt Width (in) 1.0000
Type 13
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 8.594
Outside Diameter (in) 8.564
Face Width (in) 1.250
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 218.00
O.D. (mm) 217.50
MOQ 1
Weight (lb) 7.24
Part Number Cross Reference 72LP100, 72LP100, 72LP100
