72XL037M6WA12, Timing Pulley

72XL037M6WA12 - Aluminum Metric Pulleys

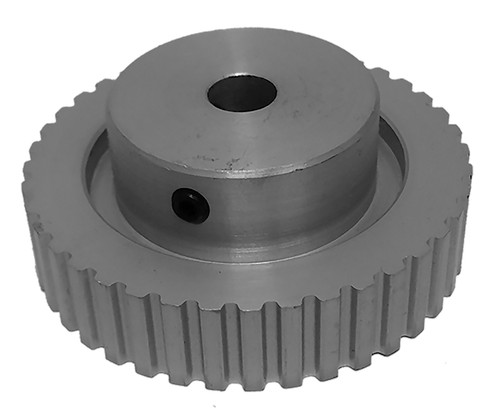

72XL037M6WA12

Click to Enlarge

72XL037M6WA12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72XL037M6WA12 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72XL037M6WA12
Teeth 72
Tooth Style XL
For Belt Width (in) 0.3750
Type 6W
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 4.584
Outside Diameter (in) 4.564
Pulley Belt Width (mm) 9.50
Unit System Inch
P.D. (mm) 116.00
O.D. (mm) 115.90
Face Width (mm) 25.40
Overall Length (mm) 9.50
Hub Diameter (mm) 38.00
MOQ 1
Weight (lb) 0.72
Part Number Cross Reference A AMNF, A6A3M72NF09512, 72XL037M6WA12
Set Screw Quantity 2
