74-2P06-6A3, Timing Pulley

74-2P06-6A3 - Aluminum Powerhouse® Pulleys

Product Details for 74-2P06-6A3

Comparable to: A 6A51-074NF0608, A6A51-074NF0608, 2MR-74S-06, 78426024, TP2A3H6-74

Click to Enlarge

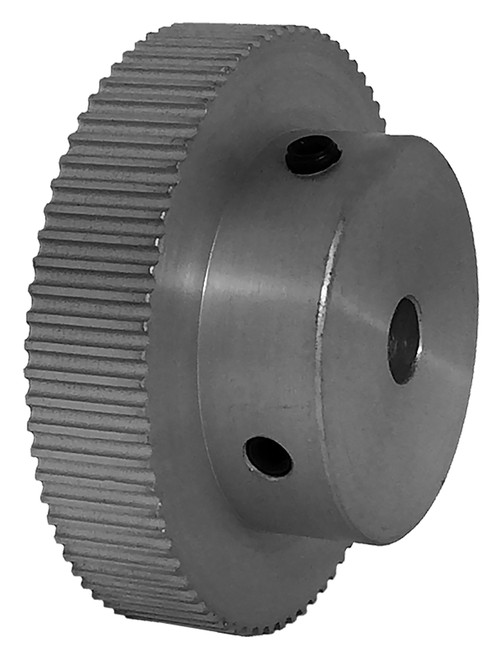

74-2P06-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 74-2P06-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 74-2P06-6A3
Teeth 74
Tooth Style 2P
For Belt Width (mm) 6
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.855
Outside Diameter (in) 1.835
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 1.215
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.14
Part Number Cross Reference A 6A51-074NF0608, A6A51-074NF0608, 2MR-74S-06, 78426024, TP2A3H6-74
Set Screw Quantity 2
