74-2P09-6A3, Timing Pulley

74-2P09-6A3

Click to Enlarge

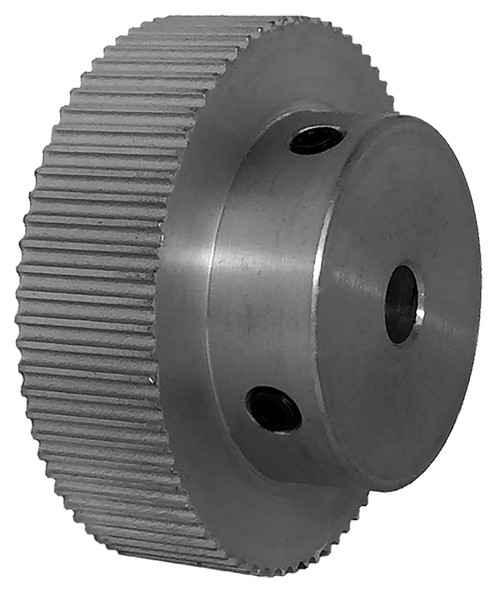

74-2P09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 74-2P09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	74-2P09-6A3
Teeth	74
Tooth Style	2P
For Belt Width (mm)	9.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.855
Outside Diameter (in)	1.835
Face Width (in)	0.500
Overall Length (in)	0.875
Hub Diameter (in)	1.215
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.500
Unit System	Inch
Belt Width (mm)	12.70
P.D. (mm)	47.00
O.D. (mm)	46.60
Face Width (mm)	12.70
Overall Length (mm)	22.20
Hub Diameter (mm)	30.90
MOQ	1
Weight (lb)	0.17
Part Number Cross Reference	A 6A51-074NF0908, A6A51-074NF0908, 2MR-74S-09, 2MR-74S-09, TP2A3H9-74, 74-2GT09-2A X 1/4, 74-2P09-6A3, 74-2P09-6A3
Set Screw Quantity	2
