75-14MX20-3525, Timing Pulley

75-14MX20-3525 - Cast Iron Powerhouse® MX Pulleys

75-14MX20-3525

Click to Enlarge

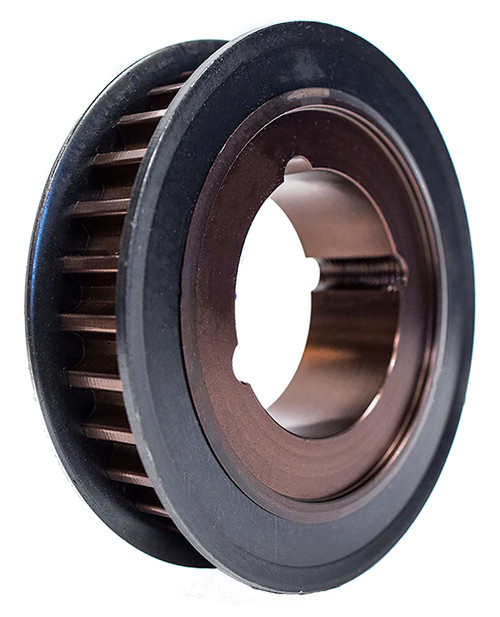

75-14MX20-3525, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 75-14MX20-3525 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 75-14MX20-3525
Teeth 75
Tooth Style 14MX
For Belt Width (mm) 20.00
Type C1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3525 Bushing
Pitch Diameter (in) 13.158
Outside Diameter (in) 13.048
Flange Diameter (in) 13.730
Face Width (in) 1.359
Overall Length (in) 2.500
Min. Bore (in) 1.5
Pulley Belt Width (in) 1.040
Unit System Inch
Bushing 3525
P.D. (mm) 334.00
O.D. (mm) 331.40
MOQ 1
Weight (lb) 35.50
Part Number Cross Reference 14MX-75S-20, 14MX75S20-3525, B14MCS-75-20, 75G-14M-20-3525, 20839866, 14MX-75S-20-3525 HT500 SPKT, 14MPC75S20, 14MX75S20-3525, 75-14MX20-3525, 482040, 75-14MX20-3525

Comparable to: 14MX-75S-20, 14MX75S20-3525, B14MCS-75-20, 75G-14M-20-3525, 20839866, 14MX-75S-20-3525 HT500 SPKT, 14MPC75S20, 14MX75S20-3525, 75-14MX20-3525, 482040, 75-14MX20-3525
