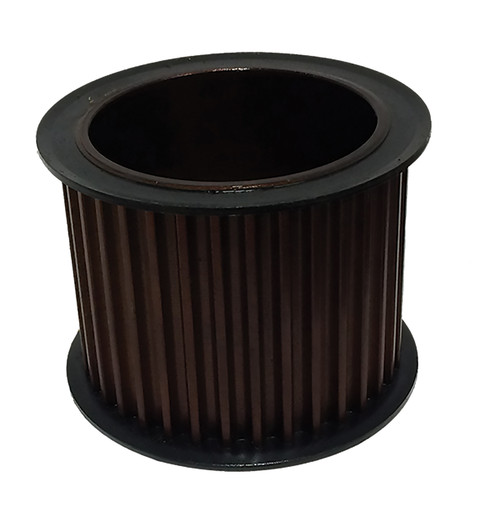

75-8MX62-3020, Timing Pulley

75-8MX62-3020

Click to Enlarge

75-8MX62-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 75-8MX62-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	75-8MX62-3020
Teeth	75
Tooth Style	8MX
For Belt Width (mm)	62.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 3020 Bushing
Pitch Diameter (in)	7.519
Outside Diameter (in)	7.456
Flange Diameter (in)	7.867
Face Width (in)	2.906
Overall Length (in)	2.906
Min. Bore (in)	0.875
Pulley Belt Width (in)	2.670
Unit System	Inch
Bushing	3020
P.D. (mm)	191.00
O.D. (mm)	189.40
MOQ	1
Weight (lb)	16.54
Part Number Cross Reference	8MX-75S-62, TB 8M-75S-62, B8MCS-75-62, 75G-8M-62-3020 TL SPROCKET WITH FLANGE, 20530417, 8MX-75S-62-3020 HT500 SPKT, 8MPC75S62, GTR-75G-8M-62, GTR-75G-8M-62, 75-8MX62-3020, 482010, 75-8MX62-3020
