765-D5M-15, Double Sided Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

765-D5M-15, TP765-5M-15

765-D5M-15

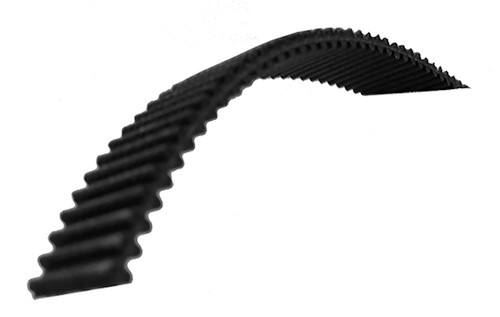

765-D5M-15, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided

Learn more about 765-D5M-15 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number	765-D5M-15
Teeth	153
Tooth Style	HTD5mm
Unit System	Metric
Belt Type	Double Sided
Belt Width (mm)	15.00
Pitch Length (mm)	765.00
Construction	Neoprene
Reinforcement	Fiberglass
MOQ	1
Weight (lb)	0.11
Part Number Cross Reference	A 6R25MD153150, TP765-5M-15, 765-D5M-15, 765-D5M-15, 765-D5M-15

Comparable to: A 6R25MD153150, TP765-5M-15, 765-D5M-15, 765-D5M-15, 765-D5M-15
