80-14MX37-3525, Timing Pulley

80-14MX37-3525 - Cast Iron Powerhouse® MX Pulleys

Product Details for 80-14MX37-3525

Comparable to: 80-14MX37-3525, 14MX-80S-37, B14MCS-80-37, 80G-14M-37-TL3525, 208398

Click to Enlarge

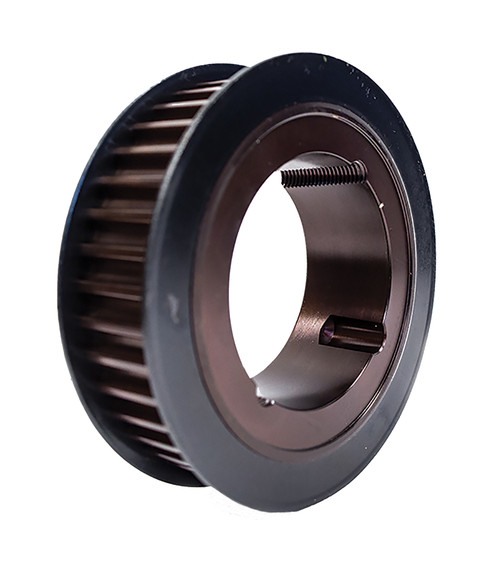

80-14MX37-3525, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 80-14MX37-3525 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 80-14MX37-3525
Teeth 80
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type C2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3525
Pitch Diameter (in) 14.036
Outside Diameter (in) 13.926
Flange Diameter (in) 14.625
Face Width (in) 2.063
Overall Length (in) 2.500
Min. Bore (in) 1.500
Pulley Belt Width (in) 1.740
Unit System Inch
Bushing 3525
Max. Bore (in) 3.9375
Weight (lb) 52.50
Part Number Cross Reference 80-14MX37-3525, 14MX-80S-37, B14MCS-80-37, 80G-14M-37-TL3525, 208398
