80-2P09-6A4, Timing Pulley

80-2P09-6A4

Click to Enlarge

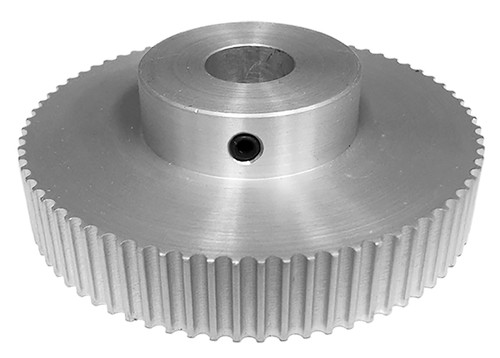

80-2P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 80-2P09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	80-2P09-6A4
Teeth	80
Tooth Style	2P
For Belt Width (mm)	9.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.313
Bore Description	5/16 Inch Finished Bore
Pitch Diameter (in)	2.005
Outside Diameter (in)	1.985
Face Width (in)	0.500
Overall Length (in)	0.875
Hub Diameter (in)	1.500
Min. Bore (in)	0.3125
Pulley Belt Width (in)	0.500
Unit System	Inch
Belt Width (mm)	12.70
P.D. (mm)	51.00
O.D. (mm)	50.40
Face Width (mm)	12.70
Overall Length (mm)	22.20
Hub Diameter (mm)	38.10
MOQ	1
Weight (lb)	0.24
Part Number Cross Reference	A 6A51-080NF0610, A6A51-080NF0610, 2MR-80S-09, 2MR-80S-09, TP2A3H6-80, 80-2GT09-2A X 5/16, 80-2P09-6A4, 80-2P09-6A4
Set Screw Quantity	2
