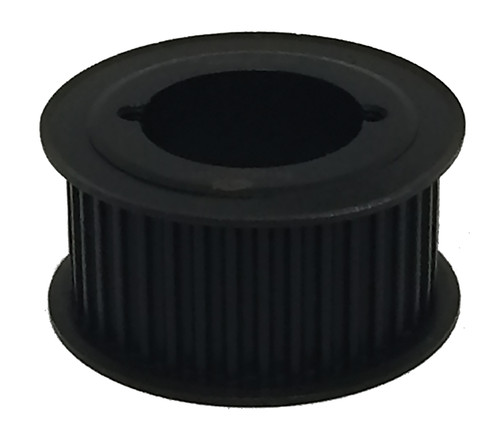

80-5MX25-2012, Timing Pulley

80-5MX25-2012 - Cast Iron Powerhouse® MX Pulleys

80-5MX25-2012

Click to Enlarge

80-5MX25-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 80-5MX25-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 80-5MX25-2012
Teeth 80
Tooth Style 5MX
For Belt Width (mm) 25
Type A-1
Material Cast Iron
Finish Black Oxide
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.968
Face Width (in) 1.280
Min. Bore (in) 0.5
Unit System Inch
Bushing 2012
P.D. (mm) 127.00
O.D. (mm) 126.20
MOQ 1
Weight (lb) 4.35
Part Number Cross Reference 80-5MX25-2012
