80-8MX12-2012, Timing Pulley

80-8MX12-2012 - Cast Iron Powerhouse® MX Pulleys

80-8MX12-2012

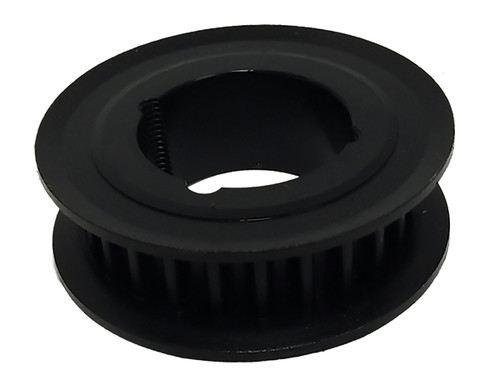

Click to Enlarge

80-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 80-8MX12-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 80-8MX12-2012
Teeth 80
Tooth Style 8MX
For Belt Width (mm) 12
Type C1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 8.020
Outside Diameter (in) 7.957
Flange Diameter (in) 8.386
Face Width (in) 0.850
Overall Length (in) 1.250
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 2012
P.D. (mm) 204.00
O.D. (mm) 202.10
MOQ 1
Weight (lb) 11.38
Part Number Cross Reference 8MX-80S-12, 8MX80S12-2012, TB 8M-80S-12, B8MCS-80-12, 80G-8M-12-2012, 8MX-80S-12-2012, 8MPC80S12, GTR-80G-8M-12, GTR-80G-8M-12, 80G8M12, 481904, 80-8MX12-2012

Comparable to: 8MX-80S-12, 8MX80S12-2012, TB 8M-80S-12, B8MCS-80-12, 80G-8M-12-2012, 8MX-80S-12-2012, 8MPC80S12, GTR-80G-8M-12, GTR-80G-8M-12, 80G8M12, 481904, 80-8MX12-2012

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
