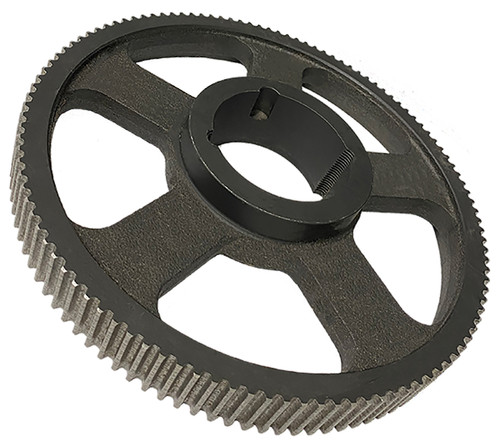

80-8MX21-2517, Timing Pulley

80-8MX21-2517 - Cast Iron Powerhouse® MX Pulleys

80-8MX21-2517

Click to Enlarge

80-8MX21-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 80-8MX21-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 80-8MX21-2517
Teeth 80
Tooth Style 8MX
For Belt Width (mm) 21
Type C1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 8.020
Outside Diameter (in) 7.957
Flange Diameter (in) 8.386
Face Width (in) 1.203
Overall Length (in) 1.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 2517
P.D. (mm) 204.00
O.D. (mm) 202.10
MOQ 1
Weight (lb) 7.75
Part Number Cross Reference 8MX-80S-21, 8MX80S21-2517, TB 8M-80S-21, B8MCS-80-21, 80G-8M-21-2517, 20839763, 481944, 8MPC80S21, GTR-80G-8M-21, GTR-80G-8M-21, 8MX-80S-21-2517, 80-8MX21-2517

Related Products

Comparable to: 8MX-80S-21, 8MX80S21-2517, TB 8M-80S-21, B8MCS-80-21, 80G-8M-21-2517, 20839763, 481944, 8MPC80S21, GTR-80G-8M-21, GTR-80G-8M-21, 8MX-80S-21-2517, 80-8MX21-2517
