80-8P50-2517 Powerhouse™ Pulleys

80-8P50-2517, P80-8MGT-50, B808M50TL, P80-8M-50-2517, 20182873

Product Details for 80-8P50-2517

Comparable to: 80-8P50-2517, P80-8MGT-50, B808M50TL, P80-8M-50-2517, 20182873

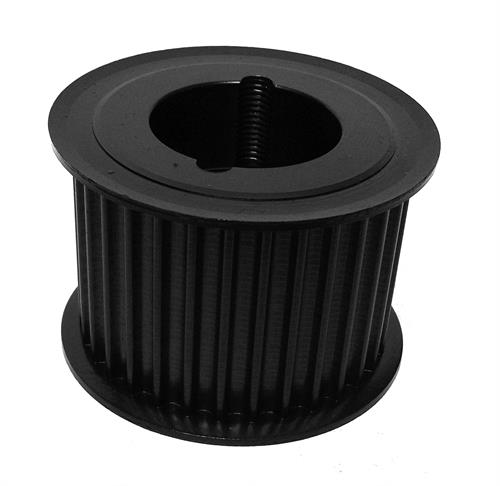

80-8P50-2517, Timing Pulley, Powerhouse, 2517 Bushing, Cast Iron

Specifications

Product Number 80-8P50-2517
Teeth 80
Tooth Style GT 8mm
For Belt Width (mm) 50.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 8.020
Outside Diameter (in) 7.966
Flange Diameter (in) 8.386
Face Width (in) 2.380
Overall Length (in) 2.380
Pulley Belt Width (in) 2.140
Unit System Inch
Bushing 2517
Weight (lb) 0.50
List Price (1-9 Qty.) (USD) 145.71
Discount Price (10-24 Qty.) (USD) 127.5
Discount Price (25-49 Qty.) (USD) 112.93
Part Number Cross Reference 80-8P50-2517, P80-8MGT-50, B808M50TL, P80-8M-50-2517, 20182873

Documentation

Download Catalog 2015_BBMAN_CATALOG_143.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 80-8P50-2517_REACH_cert
RoHS Certification 80-8P50-2517_RoHS_cert
