80-8P85-3020 Powerhouse™ Pulleys

80-8P85-3020, P80-8MGT-85, B808M85TL, P80-8M-85-3020, 201828

Product Details for 80-8P85-3020

Comparable to: 80-8P85-3020, P80-8MGT-85, B808M85TL, P80-8M-85-3020, 201828

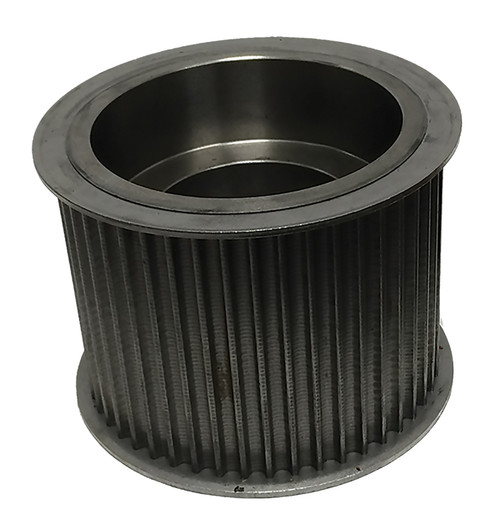

80-8P85-3020, Timing Pulley, Powerhouse, 3020 Bushing, Cast Iron

Specifications

Product Number 80-8P85-3020
Teeth 80
Tooth Style GT 8mm
For Belt Width (mm) 85.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 8.020
Outside Diameter (in) 7.966
Flange Diameter (in) 8.386
Face Width (in) 3.750
Overall Length (in) 3.750
Pulley Belt Width (in) 3.500
Unit System Inch
Bushing 3020
Weight (lb) 0.50
Part Number Cross Reference 80-8P85-3020, P80-8MGT-85, B808M85TL, P80-8M-85-3020, 201828

Documentation

Download Catalog 2015_BBMAN_CATALOG_144.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 80-8P85-3020_REACH_cert
RoHS Certification 80-8P85-3020_RoHS_cert
