80LT312-6A3 Imperial Pitch Pulleys

80LT312-6A3, A 6A6-80NF03108, PT080C08L04N

Product Details for 80LT312-6A3

Comparable to: 80LT312-6A3, A 6A6-80NF03108, PT080C08L04N

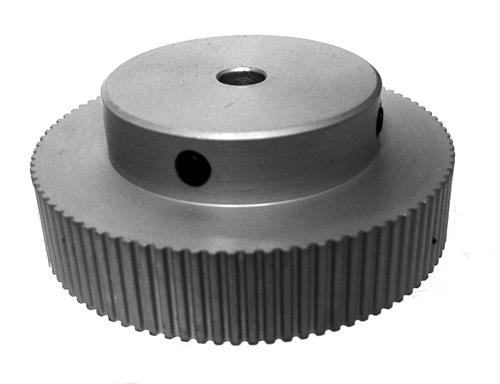

80LT312-6A3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 80LT312-6A3
Teeth 80
Tooth Style LT
For Belt Width (in) 0.313
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 2.080
Outside Diameter (in) 2.066
Face Width (in) 0.875
Overall Length (in) 1.396
Hub Diameter (in) 1.396
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Unit System Inch
Weight (lb) 0.21
List Price (1-9 Qty.) (USD) 16.95
Discount Price (10-24 Qty.) (USD) 15.06
Discount Price (25-49 Qty.) (USD) 13.87
Discount Price (50-99 Qty.) (USD) 11.89
Discount Price (100-249 Qty.) (USD) 10.7
Part Number Cross Reference 80LT312-6A3, A 6A6-80NF03108, PT080C08L04N

Documentation

Download Catalog 2015_BBMAN_CATALOG_15.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 80LT312-6A3_REACH_cert
RoHS Certification 80LT312-6A3_RoHS_cert
