80XL-PS8A Bar Stock

80XL-PS8A, A6A2-80XL08, A 6A2-80XL08, 80XL-PS-

Product Details for 80XL-PS8A

Comparable to: 80XL-PS8A, A6A2-80XL08, A 6A2-80XL08, 80XL-PS-

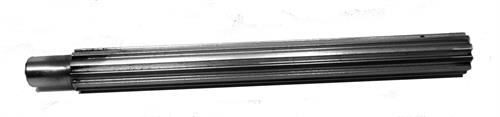

80XL-PS8A, Timing Pulley Stock, Powerhouse Timing, 8 Inch Usable Length, Aluminum

Specifications

Product Number 80XL-PS8A
Teeth 80
Tooth Style XL
Material Aluminum
Pitch Diameter (in) 5.093
Outside Diameter (in) 5.073
Overall Length (in) 9.000
Unit System Inch
Min. Usable Length (in) 8.000
P.D. (mm) 129.40
O.D. (mm) 128.90
Overall Thickness (W) (in) 0.052
Weight (lb) 17.45
Part Number Cross Reference 80XL-PS8A, A6A2-80XL08, A 6A2-80XL08, 80XL-PS-

Documentation

Download Catalog 2015_BBMAN_CATALOG_260.pdf
For custom parts click here custom.html
REACH Certification 80XL-PS8A_REACH_cert
RoHS Certification 80XL-PS8A_RoHS_cert
