84LH050, Timing Pulley

84LH050 - Cast Iron Imperial Pitch Pulleys

84LH050

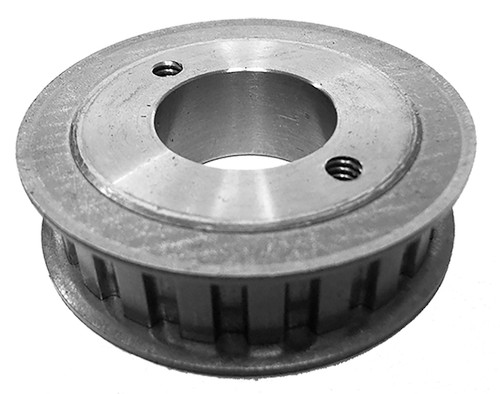

Click to Enlarge

84LH050, Timing Pulley, Cast Iron

Learn more about 84LH050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 84LH050
Teeth 84
Tooth Style L
For Belt Width (in) 0.5000
Type 17
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 10.027
Outside Diameter (in) 9.997
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 255.00
O.D. (mm) 253.90
MOQ 1
Weight (lb) 6.49
Part Number Cross Reference 84LH050, 84LH050
