84LP100, Timing Pulley

84LP100 - Cast Iron Imperial Pitch Pulleys

84LP100

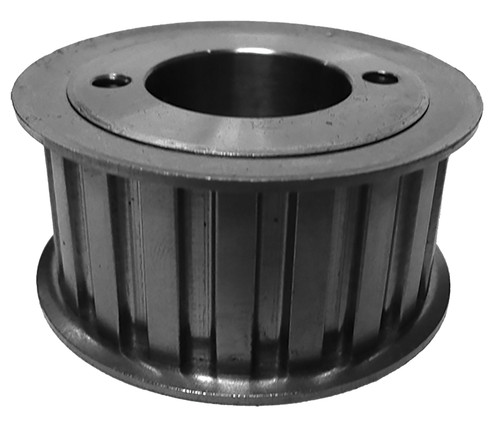

Click to Enlarge

84LP100, Timing Pulley, Cast Iron

Learn more about 84LP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 84LP100
Teeth 84
Tooth Style L
For Belt Width (in) 1.0000
Type 13
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 10.027
Outside Diameter (in) 9.997
Face Width (in) 1.250
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 255.00
O.D. (mm) 253.90
MOQ 1
Weight (lb) 9.86
Part Number Cross Reference 84LP100, 84LP100, 84LP100
