85V1090F, V-Belt Pulley

85V1090F, 5V1098, 8-5V10.9, 8/5V1090F

85V1090F

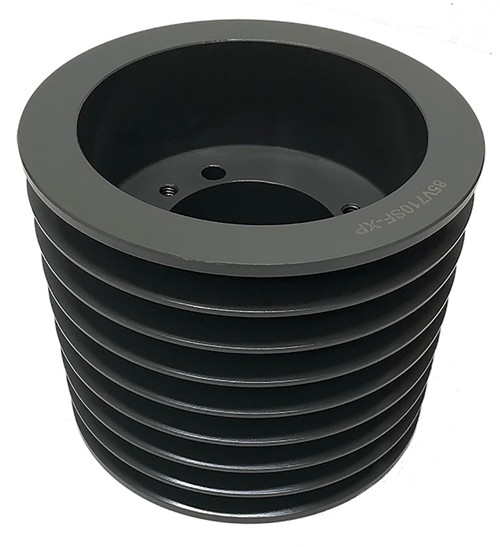

85V1090F, V-Belt Pulley, Cast Iron

Learn more about 85V1090F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 85V1090F
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 10.800
Outside Diameter (in) 10.900
Face Width (in) 5.813
Min. Bore (in) 1
Unit System Inch
Bushing F
E (in) 1.2187
L (in) 3.75
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 63.10
Part Number Cross Reference QD8/5V10.90, 8 5V 1090 F, 8-5V1090.F, 85V1090F, 5V10.9-8-F PULLEY, 20180675, 8-5V10.90-F SHEAVE, 5V1098, 85V10.9, 5V10.9-8-F, 8/5V1090F, 8-5V10.90, 85V1090F, 8/5V1090F, 455401, 85V1090F
Grooves 8

Related Products

Comparable to: QD8/5V10.90, 8 5V 1090 F, 8-5V1090.F, 85V1090F, 5V10.9-8-F PULLEY, 20180675, 8-5V10.90-F SHEAVE, 5V1098, 85V10.9, 5V10.9-8-F, 8/5V1090F, 8-5V10.90, 85V1090F, 8/5V1090F, 455401, 85V1090F
