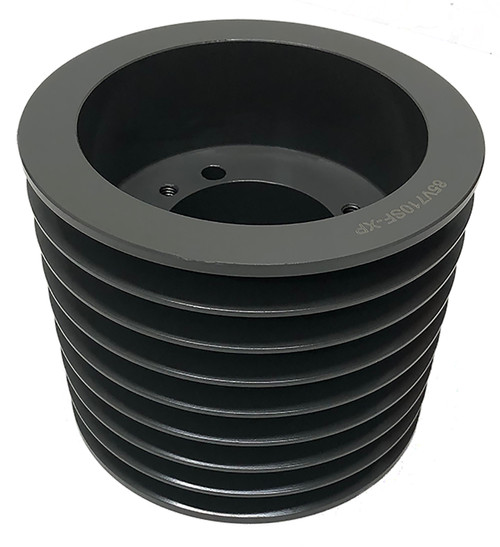

85V1130F, V-Belt Pulley

85V1130F, 5V1138, 8-5V11.3, 8/5V1130F

85V1130F

85V1130F, V-Belt Pulley, Cast Iron

Learn more about 85V1130F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 85V1130F
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 11.200
Outside Diameter (in) 11.300
Face Width (in) 5.813
Min. Bore (in) 1
Unit System Inch
Bushing F
E (in) 1.2187
L (in) 3.75
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 67.00
Part Number Cross Reference QD8/5V11.30, 8 5V 1130 F, 8-5V1130.F, 85V1130F, 5V11.3-8-F PULLEY, 20180686, 8-5V11.30-F SHEAVE, 5V1138, 85V11.3, 5V11.3-8-F, 8/5V1130F, 8-5V11.30, 85V1130F, 8/5V1130F, 455402, 85V1130F
Grooves 8

Related Products

Comparable to: QD8/5V11.30, 8 5V 1130 F, 8-5V1130.F, 85V1130F, 5V11.3-8-F PULLEY, 20180686, 8-5V11.30-F SHEAVE, 5V1138, 85V11.3, 5V11.3-8-F, 8/5V1130F, 8-5V11.30, 85V1130F, 8/5V1130F, 455402, 85V1130F
