85V1250F, V-Belt Pulley

85V1250F, 5V1258, 8-5V12.5, 8/5V1250F

Product Details for 85V1250F

Comparable to: QD8/5V12.50, 78748125, 8 5V 1250 F, 8-5V1250.F, 85V1250F, 5V12.5-8-F PULLEY, 20180709, 8/5V12.5–F, 5V1258, 85V12.5, 5V12.5-8-F, 8/5V1250F, 8-5V12.5, 455403

Click to Enlarge

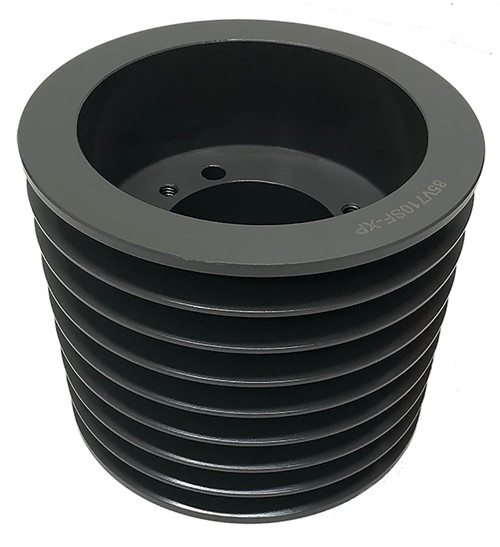

85V1250F, V-Belt Pulley, Cast Iron

Learn more about 85V1250F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 85V1250F
Type A3
Material Cast Iron
Bore Type QD
Bore (in) F
Pitch Diameter (in) 12.400
Outside Diameter (in) 12.500
Face Width (in) 5.813
Min. Bore (in) 1.000
Unit System Inch
Bushing F
E (in) 1 7/32
L (in) 3 3/4
M (in) 85v 105v.m]
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 76.00
Part Number Cross Reference QD8/5V12.50, 78748125, 8 5V 1250 F, 8-5V1250.F, 85V1250F, 5V12.5-8-F PULLEY, 20180709, 8/5V12.5–F, 5V1258, 85V12.5, 5V12.5-8-F, 8/5V1250F, 8-5V12.5, 455403
Grooves 8
