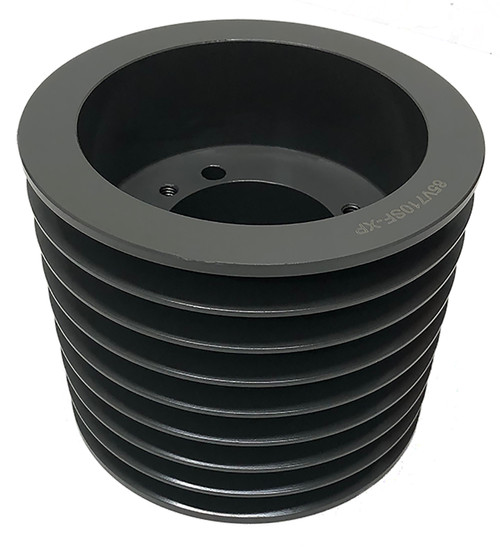

85V1600F, V-Belt Pulley

85V1600F, 5V168, 8-5V16.0, 8/5V1600F

85V1600F

85V1600F, V-Belt Pulley, Cast Iron

Learn more about 85V1600F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 85V1600F
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 15.900
Outside Diameter (in) 16.000
Face Width (in) 5.813
Min. Bore (in) 1
Unit System Inch
Bushing F
E (in) 1.2187
L (in) 3.75
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 90.00
Part Number Cross Reference QD8/5V16.00, 8 5V 1600 F, 8-5V1600.F, 85V1600F, 5V16.0-8-F, 20180754, 8-5V16.00-F SHEAVE, 5V1608, 85V16.0, 5V16.0-8-F, 8/5V1600F, 8-5V16.00, 85V1600F, 8/5V1600F, 455408, 85V1600F
Grooves 8

Related Products

Comparable to: QD8/5V16.00, 8 5V 1600 F, 8-5V1600.F, 85V1600F, 5V16.0-8-F, 20180754, 8-5V16.00-F SHEAVE, 5V1608, 85V16.0, 5V16.0-8-F, 8/5V1600F, 8-5V16.00, 85V1600F, 8/5V1600F, 455408, 85V1600F
